5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels

Name: 5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels
Brand: Remarkabl
Price: 1 USD

Quality 5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels for sale

Brand Name : Remarkabl

Model Number : KPX/RGV/RWP/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transfer Trolley

key word : Transfer Cart,coil Transfer Trolley/battery transfer cart ,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling cart,rail transfer trollley

feature : High temperature resistance，explosion-proof，customized

Flat Size : U/V/roller/lifting/explosion-proof/high temperature/Customized

Load Capacity : 1-1000 tons

Material : Welded construction of structural steel，Box girder structure

Model : Explosion Proof Rail Transfer cart

Operation Mode : Remote Control/Handle remote control/Manual /PLC

Running Speed : 0-25m/min Stepless speed regulation/ Customized

Safety Device : Limit switch，RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor

Warranty : 1 year

Wheel Material : steel wheel

Application : Industrial Filed, Building,military industry，steel/Metallurgical casting/Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Contact Now

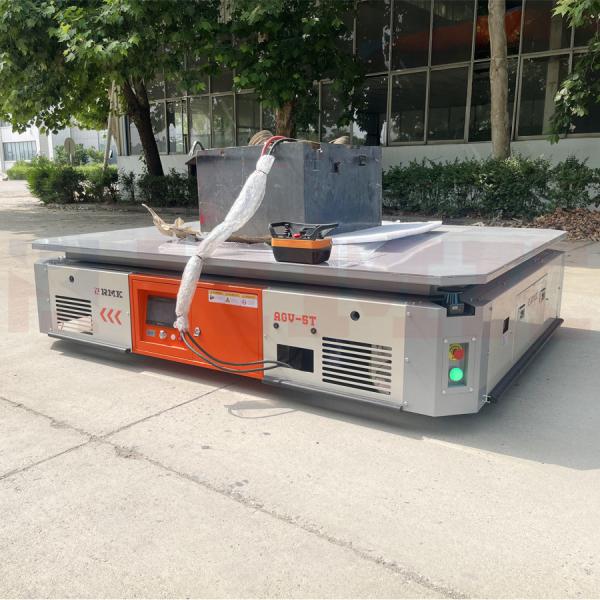

5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels

^{5 Tons AGV omnidirectional trackless transport cart with steering wheels, exported to the Netherlands. The steering wheel of an AGV (Automatic Guided Cart) is one of the core components of the AGV system, mainly responsible for controlling the direction and speed of AGV travel. It achieves precise control of the AGV by comprehensively processing its real-time position, attitude, and task requirements, enabling it to autonomously travel along specified paths and speeds. The working principle of a steering wheel involves multiple aspects such as sensor technology, motor drive technology, control algorithms, etc,}

5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels

^{Customized technical specifications for battery powered transfer carts that can be turned:}

^{1. Load capacity: 5T}

^{2. Table size: 2000 * 1500 * 600mm}

^{3. Operation mode: wired remote control+control panel}

^{4. Speed: 0-20m/min}

^{5. Protective measures: alarm lights, emergency stop buttons, laser scanners}

^{6. Other functions: Hydraulic lifting device}

^{7. Paint color: Customized}

5 Tons AGV Omnidirectional Trackless Transport Cart With Steering Wheels

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5
