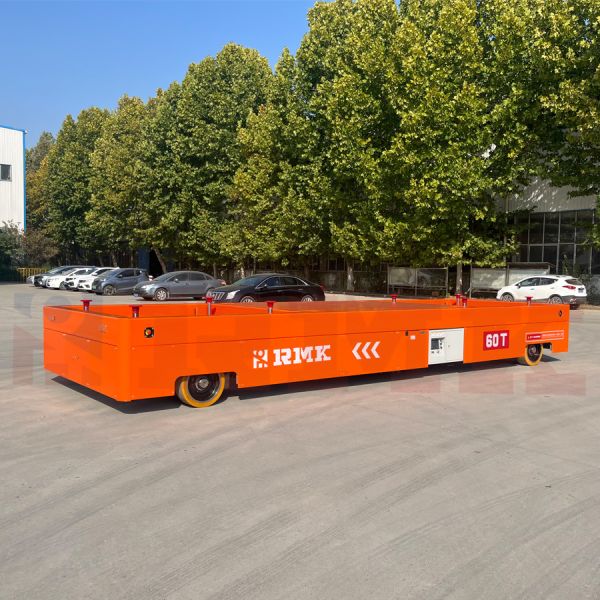

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart

Name: 60 Tons Heavy Duty Hydraulic Lifting Trackless Cart
Brand: Remarkabl
Price: 1 USD

Quality 60 Tons Heavy Duty Hydraulic Lifting Trackless Cart for sale

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transport Cart

Power Supply : Maintenance Free Battery /lithium Battery/cable

Climbing slope : No More Than 3 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Forward,backward,and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : Industrial Heavy Duty Transport Cart,electric transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel Omnidirectional movement

model : Trackless transfer cart RWP/AGV

Contact Now

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart

^{60 tons heavy-duty hydraulic trackless cart with customized lifting platform. Mainly used in mechanical manufacturing, automotive industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port freight yards, steel plate distribution, steel metallurgy, mining transportation, aerospace, military and other industries.}

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart ^{A trackless electric flat cart is an electric transportation equipment operated by a person. A transport cartt with safety protection and various load transfer functions, powered by lead-acid or lithium batteries, with motor speed control drive technology and dual operation modes of wire control and remote control, enables the flat cart to start, stop, move forward, reverse, turn, and rotate 360 degrees in place. This type of cart is used for cross workshop transportation in multiple workshops, with high safety and flexibility, smooth operation, high accuracy, fast speed, high flexibility, large load, and high efficiency.}

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart ^{Trackless electric flat carts can be equipped with hydraulic lifting systems according to user requirements, achieving functions such as platform lifting and overturning, as well as other auxiliary devices such as saddle seats, U-shaped, V-shaped, roller brackets, clamping devices, anti slip and high-temperature devices to meet the needs of different occasions.}

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}

60 Tons Heavy Duty Hydraulic Lifting Trackless Cart
