15 Tons Differential Steering Electric Transfer Cart

Name: 15 Tons Differential Steering Electric Transfer Cart
Brand: Remarkabl
Price: 1 USD

Quality 15 Tons Differential Steering Electric Transfer Cart for sale

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transport Cart

Power Supply : Maintenance Free Battery /lithium Battery/cable

Climbing slope : No More Than 3 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Forward,backward,and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : Industrial Heavy Duty Transport Cart,electric transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel Omnidirectional movement

model : Trackless transfer cart RWP/AGV

Contact Now

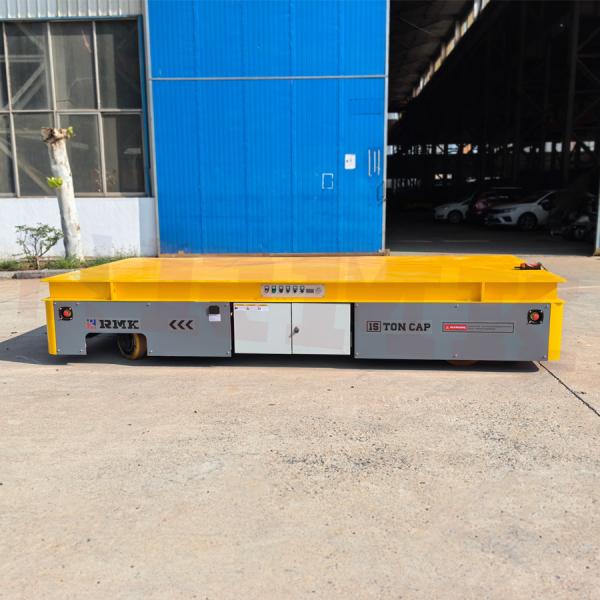

15 Tons Differential Steering Electric Transfer Cart

^{The operation of the 15 tons differential steering electric transfer cart is mainly based on the differential steering mechanism. When it is necessary to turn, the electrical control system will adjust the rotation speeds of the motors of the two driving wheels according to the direction and angle of the turn. For example, when the vehicle turns left, the rotation speed of the motor of the inner (left) driving wheel slows down, while the rotation speed of the motor of the outer (right) driving wheel speeds up, so that the linear speed of the outer wheel is greater than that of the inner wheel.}

^{Rated Loading capacity(T):15}

^{Table size(mm):4000*2000(L*W)}

^{Operation method:Wireless remote control & Hand operate pendant}

^{Power supply:Maintenance free battery}

^{Safety device:Audible and visual alarm lamp and emergency stop button}

15 Tons Differential Steering Electric Transfer Cart

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}
